Flights Flask Application

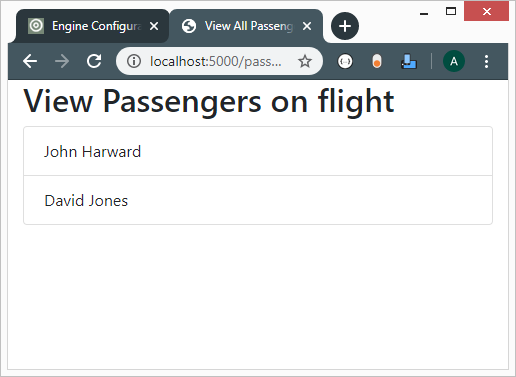

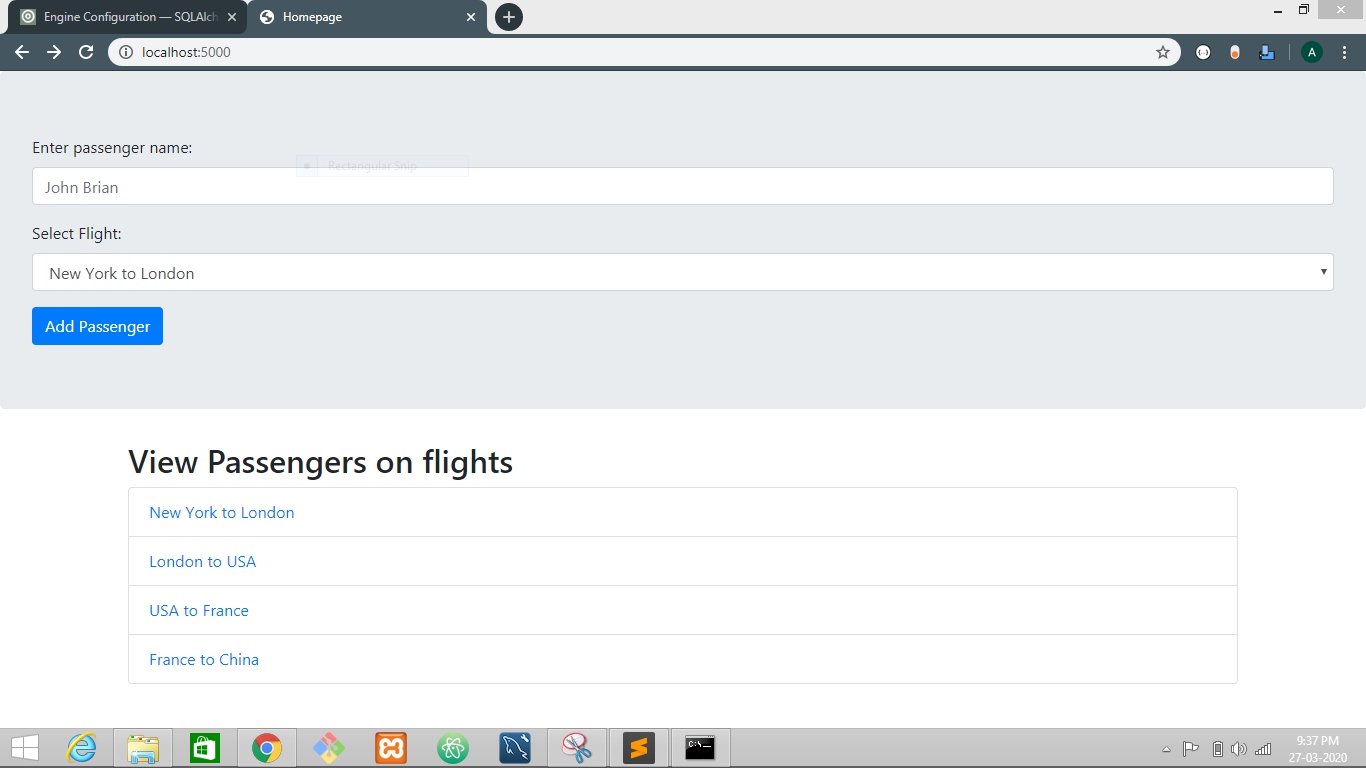

finished index page finished passengers page

Application Specification

The app should implement the following features:

  • List All flights.
  • Book a flight.
  • View all passengers in a flight.
  • App should be implemented using Flask

To keep the app minimum, I decided to keep the application simple. The app will not provide use any authentication. The application will help us understand about:

  • Creating a virtual environment
  • Defining Routes in Flask app.
  • Rendering HTML files in flask app.
  • Handling Get and POST requests in flask app.
  • Handling Form Submission in flask app
  • Working with database in flask app

Challenge 1: Hello World Flask app

To create a basic flask app that prints Hello, World, we need to setup the project structure.

The project Structure will look as:

flights
    | app.py

The above structure has a folder flights and an app.py file inside it.

image showing folder structure

Virtual Environment

Virtual Environment is a workspace that holds all your project requirements and the exact versions of the external modules used in the project.

Virtual Environment helps to seperate the dependencies based on the project.

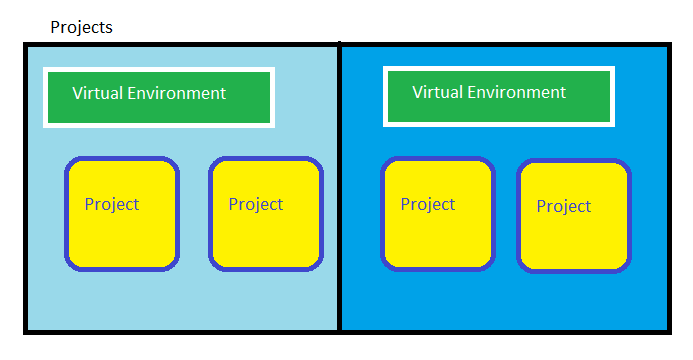

image demonstrating venv

Creating Virtual Environment

The steps to create the virtual environment are:

  • Navigate to the flights folder
  • Open the CMD / Command Prompt / Terminal in this directory
  • Now execute the following command in the terminal
python -m venv venv

Syntax:

python -m venv environment_name

The explanation of the above command is:

  1. python is the programming language executable
  2. -m is the commandline option passed to the python executable
  3. venv is the module name that creates the virtual environment
  4. venv is the name of virtual environment folder that will be created by the venv module of python.

The above commands contains two venv words in the syntax. The first venv is the module name and The second venv is the name of virtual environment.

Activating the Virtual Environment

To activate the virtual environment the following commands will be used:

Before executing the below commands navigate to flights directory used for project

On Windows:

cd venv/Scripts
activate

image showing activating venv

On Linux or MAC:

source venv/bin/activate

Installing dependencies in the virtual environment

Now, we are able to install modules in our virtual environment. To install the virtual environment execute the following command:

Syntax:

pip install package_name

Command:

pip install flask

Creating Hello World App

Follow the below steps:

  • Open app.py file
# Import Flask class to create an app object
from flask import Flask


# Create an app
app = Flask(__name__)

# Configure the / route
@app.route('/')
def index():
    return "Hello, World"

# Start the app
if __name__ == "__main__":
    app.run()

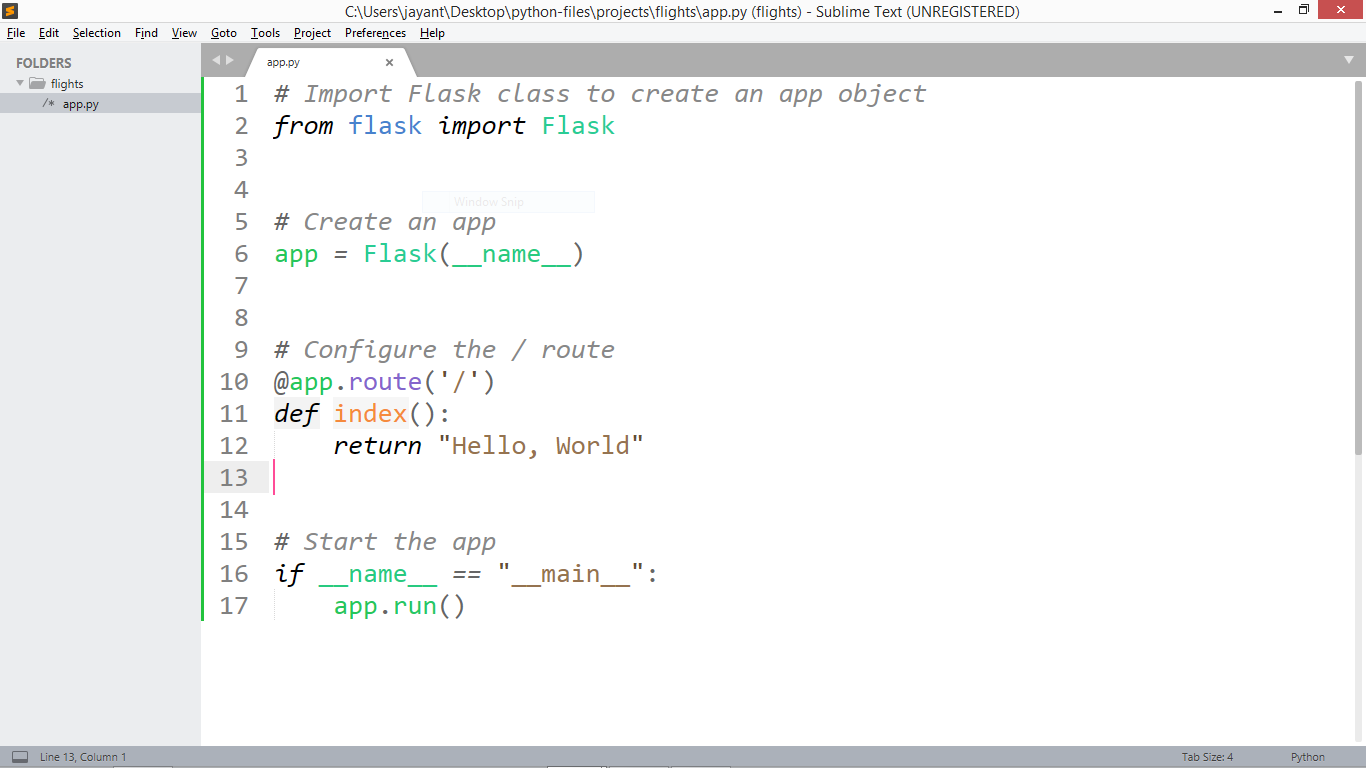

image showing hello world app

The code performs the following steps:

  1. Imports Flask class from the flask module.
  2. Creates an app object using Flask class
  3. Defines the index route using app.route('location') syntax.
  4. index function is executed when the / route is accessed
  5. At last we run our flask app, using app.run()

Testing our app

Now open the CMD or the Terminal in the project directory and execute the following command.

flask run

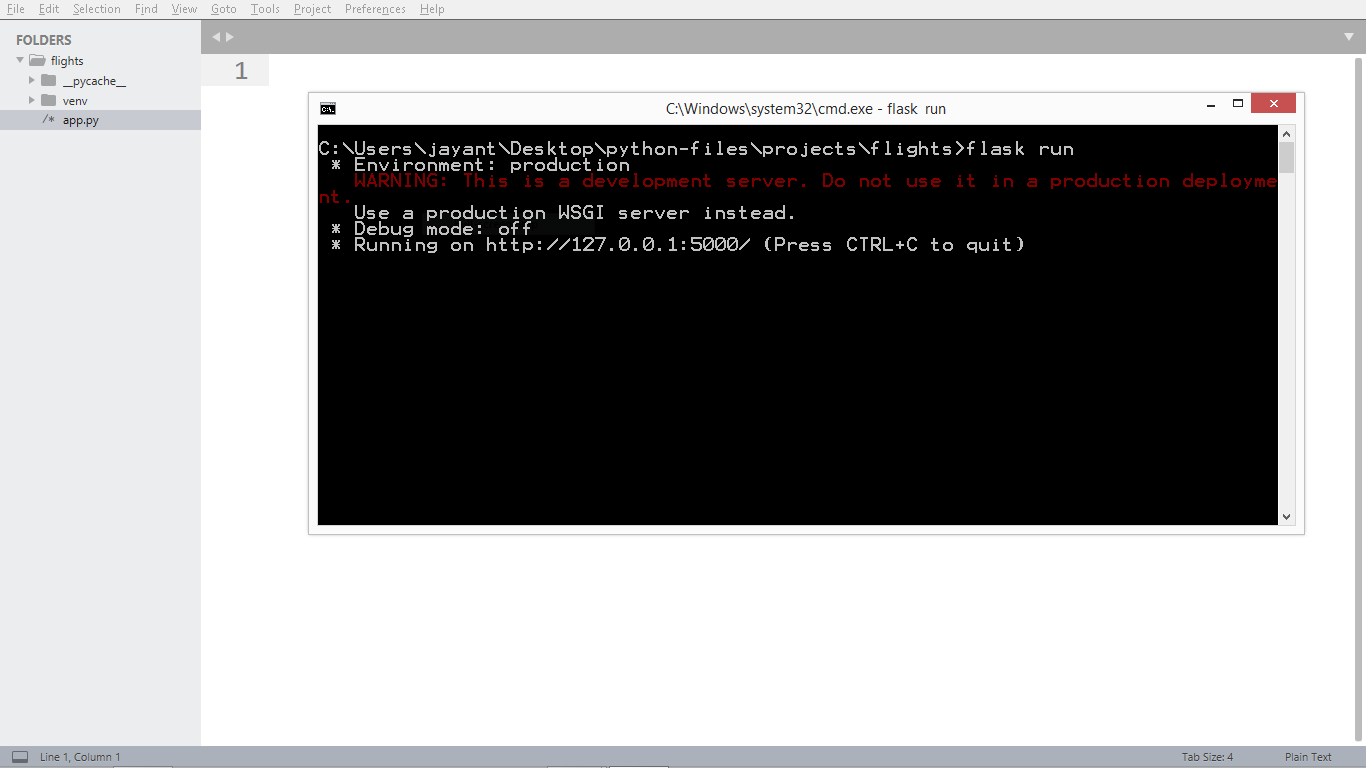

Image showing start of flask web server

The above command will start the flask web server at http://127.0.0.1:5000

Now open your web browser at the following URL and you will see your flask app working.

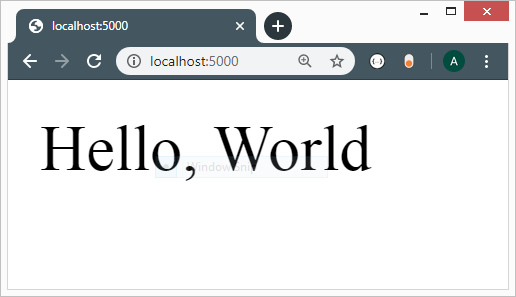

image showing output of flask app

Challenge 2: Rendering HTML files

Setup the Debug Mode

In the above app if you change the return statement of app.py file index function to print Welcome, Mr. User, then the contents of the web browser will not change. This is because each time we make a change to our project files, we need to restart the server.

So, we need a way to automatically restart the start each time, we make a change in our code. Flask already has the feature allowing auto restart of server.

We need to enable the debug feature of the flask app.

To enable the debug feature just set the environment variable to following:

On Windows:

set FLASK_ENV=development

On Linux:

export FLASK_ENV=development

The above lines will set the FLASK_ENV variable to development for current instance of the CMD or Terminal.

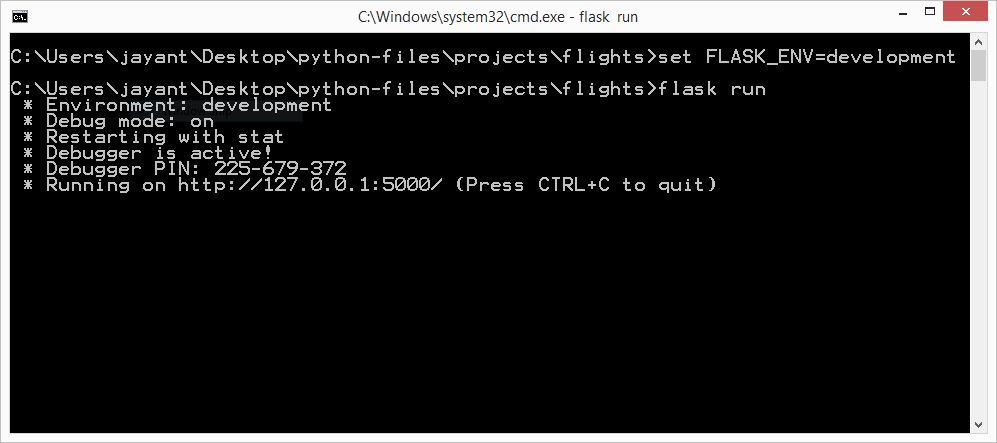

Image demonstrating Flask debug mode

If you want to permanently set the FLASK_ENV add the above line to ~/.bashrc file on linux and for windows user, I do not know how to do it permanently.

The another option is to modify the app.py file

if __name__ == "__main__":
    app.run(debug=True)

Both the ways will result in the desired outcome, of auto restarting the server each time app.py is updated.

Creating Directory Structure

In order to serve the HTML files flask uses a fixed directory structure as follows:

- flights/
    | - templates/
    |       |   index.html
    |       |   home.html
    |       |   layout.html
    | - static/
            |   css/
            |   js/
            |   assets/

In the above diagram we have a flights folder containing two sub folders templates and static.

templates folder will contain all the HTML files to be served static folder will contain all the CSS, Javascript, images, or other assets such as videos for website.

The folder hierachy is important because flask will specifically look for templates and static folder, if the content is placed in other folder the app will not work as required.

Creating Index File

Let's create a index.html file inside templates folder.

- flights/
    |   - templates/
    |       |   index.html

Contents of index.html file:

<!DOCTYPE html>
<html lang="en" dir="ltr">
    <head>
        <title>Homepage</title>
        <meta charset="utf-8" />
    </head>
    <body>
        <h1>Welcome to the flask website</h1>
    </body>
</html>

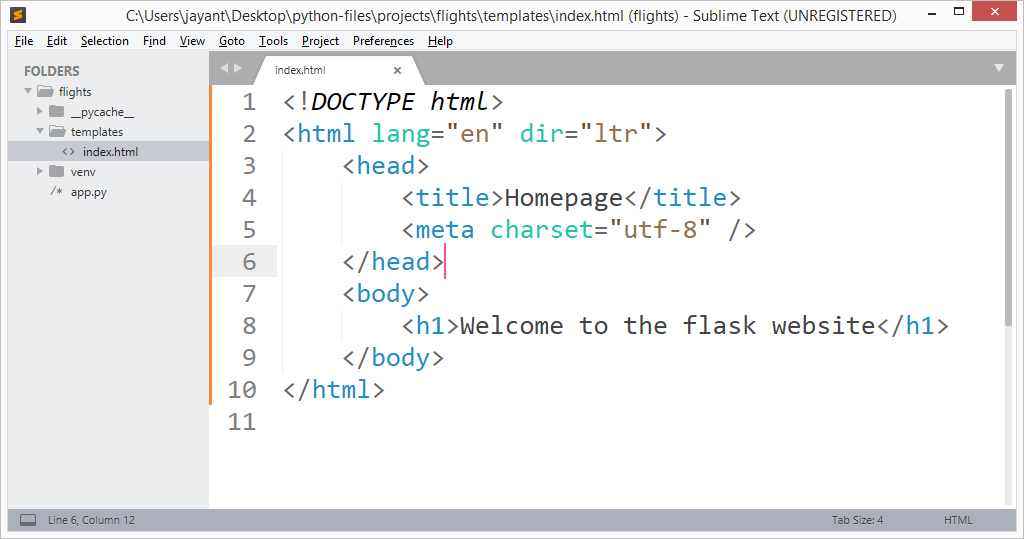

image showing index.html file

Now to serve the html file to the user using our flask app, we need to perform the following steps:

  1. Import the render_template function from flask
  2. Return the render_template('filename.html') from flask route

So, app.py will be:

from flask import Flask, render_template

# Create an app
app = Flask(__name__)

# Define the index route
@app.route('/')
def index():

    # Render the HTML file
    return render_template('index.html')

# Start the app
if __name__ == "__main__":
    app.run()

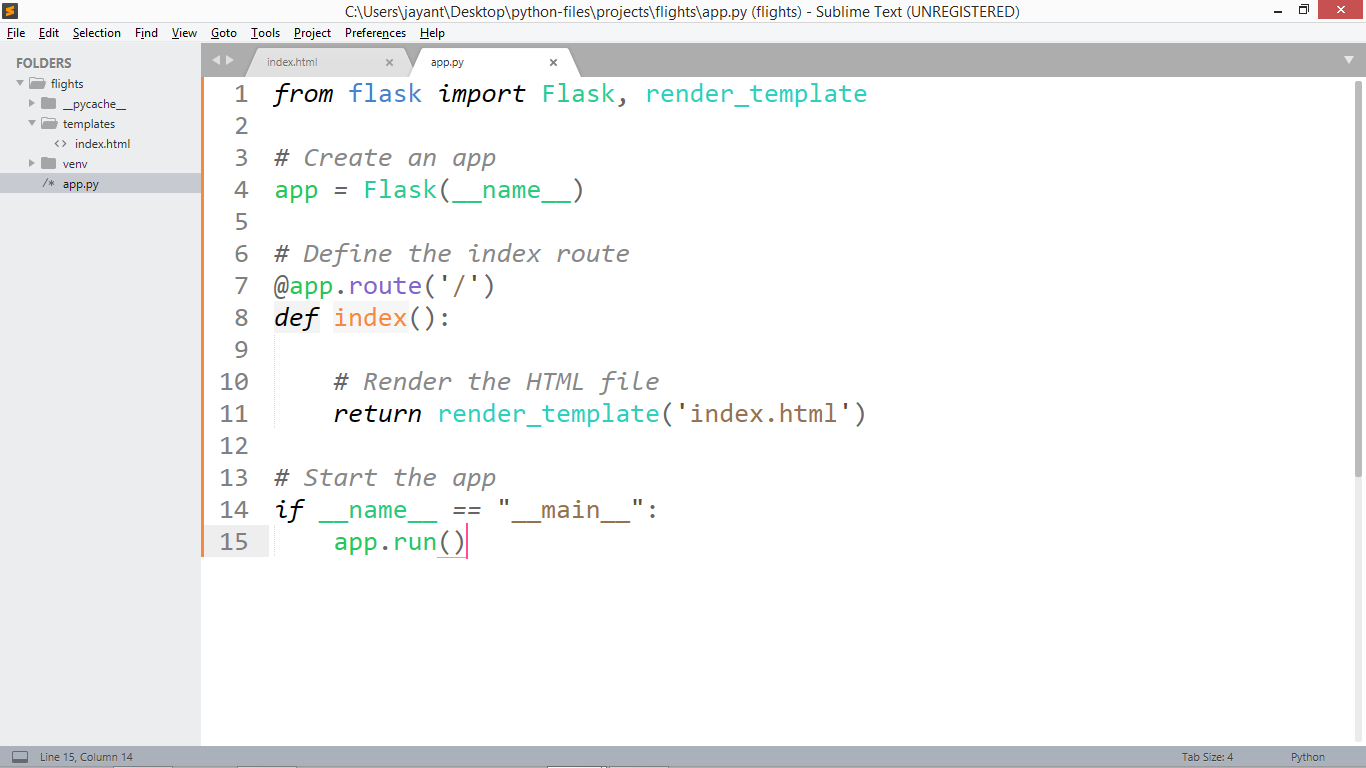

image showing app.py file

Practice time

Try to change the contents of the index.html file and and answer the following questions:

  • Does the flask server restart?
  • Does the change in contents of the index.html file gets changed on the user screen, when the user reloads the page?
  • Does renaming templates folder to something else, works?
  • Does the removal of app.run() keeps your app running?

Challenge 3: Handling GET and POST requests

There are various types of requests that can be made using HTTP

Method Description
GET Retrieve content from server
POST Submit content to server
PUT Update content on server
DELETE Delete content from server
PATCH Update a part of content on server

and there are even more...

The above methods also helps us create apis using flask.

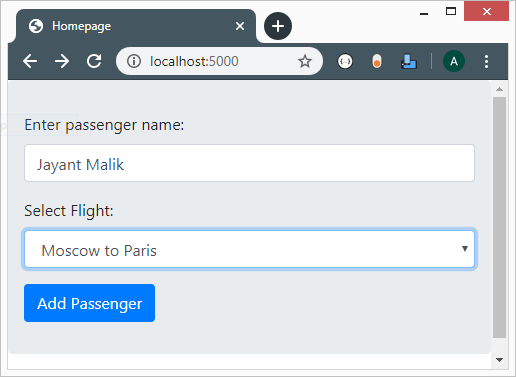

Creating Form to submit data

Before implementing GET or POST in app.py file we, first need to create an html form which will allow us to submit data to the server.

Below html code will generate the HTML FORM for us.

<!-- Replace <h1>Welcome...</h1> with the content below -->

<div class="jumbotron">
    <form>
        <div class="form-group">
            <label for="passenger">Enter passenger name: </label>
            <input
                type="text"
                class="form-control"
                name="passenger-name"
                id="passenger"
                required
                autofocus
                placeholder="John Brian"
            />
        </div>
        <div class="form-group mt-2">
            <label for="flight">Select Flight: </label>
            <select name="flight" id="flight" class="form-control">
                <option value="moscow-paris">Moscow to Paris</option>
                <option value="moscow-paris">Paris to London</option>
                <option value="moscow-paris">Paris to USA</option>
                <option value="moscow-paris">London to INDIA</option>
            </select>
        </div>
        <button type="submit" class="btn btn-primary">
            Add Passenger
        </button>
    </form>
</div>

To style the html file we need to include the bootstrap css file. For including the bootstrap file visit: getbootstrap.com and navigate to documentation, then copy the CDN css link and paste it in index.html file.

The complete html file becomes:

<!DOCTYPE html>
<html lang="en" dir="ltr">
    <head>
        <title>Homepage</title>
        <meta charset="utf-8" />
        <link
            rel="stylesheet"
            href="https://stackpath.bootstrapcdn.com/bootstrap/4.4.1/css/bootstrap.min.css"
        />
    </head>
    <body>
        <div class="jumbotron">
            <form>
                <div class="form-group">
                    <label for="passenger">Enter passenger name: </label>
                    <input
                        type="text"
                        class="form-control"
                        name="passenger-name"
                        id="passenger"
                        required
                        autofocus
                        placeholder="John Brian"
                    />
                </div>
                <div class="form-group mt-2">
                    <label for="flight">Select Flight: </label>
                    <select name="flight" id="flight" class="form-control">
                        <option value="moscow-paris">Moscow to Paris</option>
                        <option value="moscow-paris">Paris to London</option>
                        <option value="moscow-paris">Paris to USA</option>
                        <option value="moscow-paris">London to INDIA</option>
                    </select>
                </div>
                <button type="submit" class="btn btn-primary">
                    Add Passenger
                </button>
            </form>
        </div>
    </body>
</html>

We need to implement the following in index.html file:

  1. Configure form to send post request to server
  2. Configure form to use a specific url when sending request.

The 1st step is simple, as we need to only specify a attribute to the form tag.

<!-- method will specify the type of request to send -->
<!-- only get and post request are supported by html -->
<form method="post"></form>

Go ahead and change the form element to use post method, before continuing.

Now, let's proceed with the 2nd requirement of specifying the url for sending requirements.

To specify an URL, we need to create a route in app.py file. We will be creating this route later, for now let's assume we create a add-passenger route in app.py file and complete our index.html file.

<!-- action attribute allows us
specify the url for sending requests. -->
<form action="/add-passenger"></form>

<!-- flask uses jinja2 template engine
so we can also use another syntax. -->
<form action="{{url_for('addPassenger')}}"></form>

The above snippet shows two ways of specifying the action in index.html file, Both of them are used, as per the requirements. But for most of the cases the second syntax(jinja2 syntax) is preferred over the first one.

Jinja2 is a template engine, which processes the special queries put in double braces, before rendering the html file.

addPassenger is the above syntax is the function name, which we will create in app.py file.

Receiving Data in app.py file

To receive the data let's implement the app.py file, the process will require three steps:

  1. Import the request object from flask
  2. Create a route and configure it to accept POST requests.
  3. Get the data using request object

The three steps will look as follows:

# Import request object
from flask import request

# This is Partial file....

# Create a route
@app.route('/add-passenger', methods=["POST"])
def addPassenger():
    # Extract information from form
    passenger = request.form.get('passenger-name')
    flight = request.form.get('flight-id')

    return f"Passenger: {passenger}, Flight: {flight}"

Now, to complete the app.py update the app.py file to following:

from flask import Flask, render_template, request

# Create an app
app = Flask(__name__)

# Define the index route
@app.route('/')
def index():

    # Render the HTML file
    return render_template('index.html')



# Create a route
@app.route('/add-passenger', methods=["POST"])
def addPassenger():
    # Extract information from form
    passenger = request.form.get('passenger-name')
    flight = request.form.get('flight-id')

    return f"Passenger: {passenger}, Flight: {flight}"

# Start the app
if __name__ == "__main__":
    app.run()

The final completed html and python files are:

<!DOCTYPE html>
<html lang="en" dir="ltr">
    <head>
        <title>Homepage</title>
        <meta charset="utf-8" />
        <link
            rel="stylesheet"
            href="https://stackpath.bootstrapcdn.com/bootstrap/4.4.1/css/bootstrap.min.css"
        />
    </head>
    <body>
        <div class="jumbotron">
            <form action="{{url_for('addPassenger')}}" method="post">
                <div class="form-group">
                    <label for="passenger">Enter passenger name: </label>
                    <input
                        type="text"
                        class="form-control"
                        name="passenger-name"
                        id="passenger"
                        required
                        autofocus
                        placeholder="John Brian"
                    />
                </div>
                <div class="form-group mt-2">
                    <label for="flight">Select Flight: </label>
                    <select name="flight-id" id="flight" class="form-control">
                        <option value="1">Moscow to Paris</option>
                        <option value="2">Paris to London</option>
                        <option value="3">Paris to USA</option>
                        <option value="4">London to INDIA</option>
                    </select>
                </div>
                <button type="submit" class="btn btn-primary">
                    Add Passenger
                </button>
            </form>
        </div>
    </body>
</html>

from flask import Flask, render_template, request

# Create an app
app = Flask(__name__)

# Define the index route
@app.route('/')
def index():

    # Render the HTML file
    return render_template('index.html')



# Create a route
@app.route('/add-passenger', methods=["POST"])
def addPassenger():
    # Extract information from form
    passenger = request.form.get('passenger-name')
    flight = request.form.get('flight-id')

    return f"Passenger: {passenger}, Flight: {flight}"

# Start the app
if __name__ == "__main__":
    app.run()

The output of the above steps will look as follows:

add passenger browser image

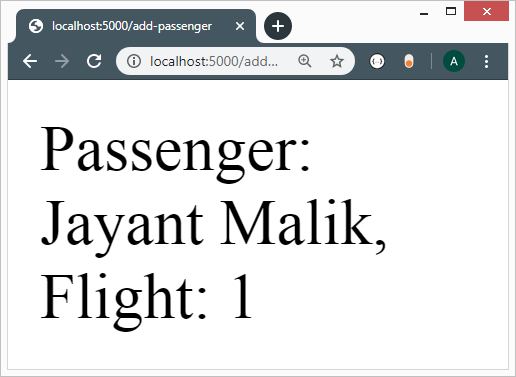

add passenger output browser image

Challenge 4: Working with database

To work with database we will use a package SQLALCHEMY. SQLAlchemy allows us to execute sql commands from inside of our flask app.

Note: We could execute sql commands using pure Python, without using any dependencies. But, for production applications, we want to ensure complete security, and prevent hacks or attacks like SQL INJECTION. Hence, we use SQLAlchemy.

What Database to use?

Today, we have several options to consider, for production apps, such as :

Database Data Stored Description
SQLite On Device Used for offline applications, such as android apps, and apps which do not require user to store data on server.
MYSQL On Server Most used online database engine.
Postgres On server Alternative to MYSQL
Oracle DB On server I don't use it.
MS SQL Server On server Alternative to mysql, but only available on Windows, now microsoft is trying to make it available on linux

For our purpose, the application will remain on our local development machine. We are not planning to deploy it online. So, we can use SQLITE.

Install SQLAlchemy

Run the below command to install SQLAlchemy :

pip install sqlalchemy

Using Sqlalchemy

Creating an application, that only works is not the goal of this tutorial. We have the following goal:

  • Application should work
  • Application should be secure.

To keep the application secure, we will set the DATABASE_URL in our TERMINAL or CMD as environment variable, and then we will use it.

The steps to take are:

  • Set an environment variable with DATABASE_URL name.
  • Use environment variable in app.py file for connecting to database.

To setup the database url we will run the following commands:

on Windows:

set DATABASE_URL=sqlite:///flights.db

on Linux:

export DATABASE_URL=sqlite:///flights.db

Our environment variable is set correctly, now we need to configure our app.py file to use database for storing information.

The steps to implement sqlalchemy are:

  1. Import sqlalchemy.
  2. create database engine to execute query.
  3. Execute the SQL statement.
# import sqlalchemy class
from sqlalchemy import create_engine

# Create database engine to execute commands
db = create_engine('DATABASE URI')

# Execute the query
db.execute('SQL QUERY HERE')

The implementaion in app.py will look as:

from flask import Flask, render_template, request
from sqlalchemy import create_engine
import os

# Create an app
app = Flask(__name__)

if not os.getenv('DATABASE_URL'):
    raise Exception("Database url is not set.")

db = create_engine(os.getenv('DATABASE_URL'))


# Define the index route
@app.route('/')
def index():

    # Render the HTML file
    return render_template('index.html')



# Create a route
@app.route('/add-passenger', methods=["POST"])
def addPassenger():
    # Extract information from form
    passenger = request.form.get('passenger-name')
    flight = request.form.get('flight-id')

    return f"Passenger: {passenger}, Flight: {flight}"

# Start the app
if __name__ == "__main__":
    app.run()

Notice that, we have not executed any query in the above app.py source code. This is what we will be doing next.

Preparing Database

In order to create tables to store data of our flights we need to execute sql queries on our database. We will be doing this stuff in a seperate python file in the current project.

The idea is to:

  1. Create a create_tables.py file in current project
  2. Write python and sql code to create tables.
  3. Execute the create_tables.py script using python interpreter.

Step 1: (Creating create_tables.py file)

Create a new create_tables.py file in the current project, the directory structure will look as follows:

- flights/
    |   app.py
    |   create_tables.py
    |   templates/
            |   index.html

Step 2: (Writing SQL queries to create tables)

The idea is:

  1. Create a basic flask app
  2. Import sqlalchemy and create db engine
  3. Execute sql queries using sqlalchemy
  4. Exit the program.

The code will look as follows:

# Import sqlalchemy and os
from sqlalchemy import create_engine
import os

# CHECK IF ENVIRONMENT VARIABLE IS SET
if not os.getenv('DATABASE_URL'):
    raise Exception('DATABASE URL IS NOT SET.')

# Create db instance
db = create_engine(os.getenv('DATABASE_URL'))

# Start the flask app
if __name__ == "__main__":
    # Execute the sql commands here
    pass

Now, its time to write SQL queries, and create two tables:

  • One table will hold all the passengers.
  • One table will hold all the flights.

The idea behind flights table is that:

  • Every flight will have some origin, destination and duration in hours of the flight.

The sql queries for flights table

CREATE TABLE IF NOT EXISTS flights(
    id INTEGER PRIMARY KEY AUTOINCREMENT,
    origin VARCHAR(30) NOT NULL,
    destination VARCHAR(30) NOT NULL,
    duration INTEGER NOT NULL
);

The idea behind passengers table is that:

  • Every passenger will travel using some flight and he or she will have a name.

The sql query for passengers table is:

CREATE TABLE IF NOT EXISTS passengers(
    id INTEGER PRIMARY KEY AUTOINCREMENT,
    name VARCHAR(30) NOT NULL,
    flight_id INTEGER NOT NULL,
    FOREIGN KEY(flight_id) REFERENCES "flights.id"
);

Now, contents of create_tables.py file will be:

# Import flask and sqlalchemy
from sqlalchemy import create_engine
import os

# CHECK IF ENVIRONMENT VARIABLE IS SET
if not os.getenv('DATABASE_URL'):
    raise Exception('DATABASE URL IS NOT SET.')

# Create db instance
db = create_engine(os.getenv('DATABASE_URL'))

# Execute the database queries.
if __name__ == "__main__":
    # =========================
    #   FLights Table
    # =========================
    db.execute("""
        CREATE TABLE IF NOT EXISTS flights(
        id INTEGER PRIMARY KEY AUTOINCREMENT,
        origin VARCHAR(30) NOT NULL,
        destination VARCHAR(30) NOT NULL,
        duration INTEGER NOT NULL
        );""")


    # =========================
    #   Passengers Table
    # =========================

    db.execute("""
        CREATE TABLE IF NOT EXISTS passengers(
        id INTEGER PRIMARY KEY AUTOINCREMENT,
        name VARCHAR(30) NOT NULL,
        flight_id INTEGER NOT NULL,
        FOREIGN KEY(flight_id) REFERENCES "flights.id");
        """)

Integrating Database into our app.

To display all the flights in the index.html file, we need to fetch all the flights from the database. so, we will be doing all this in the index function.

The code inside index function will look as follows:

# Define the index route
@app.route('/')
def index():
    # Fetch all the flights
    flights = db.execute('SELECT id, origin, destination, duration FROM flights;')

    # Convert flights to list
    flights = list(flights)

    # Render the HTML file with data
    return render_template('index.html', flights=flights)

and the code inside index.html fill look as follows:

<!DOCTYPE html>
<html lang="en" dir="ltr">
    <head>
        <title>Homepage</title>
        <meta charset="utf-8" />
        <link
            rel="stylesheet"
            href="https://stackpath.bootstrapcdn.com/bootstrap/4.4.1/css/bootstrap.min.css"
        />
    </head>
    <body>
        <div class="jumbotron">
            {% if flights %}
            <form action="{{url_for('addPassenger')}}" method="post">
                <div class="form-group">
                    <label for="passenger">Enter passenger name: </label>
                    <input
                        type="text"
                        class="form-control"
                        name="passenger-name"
                        id="passenger"
                        required
                        autofocus
                        placeholder="John Brian"
                    />
                </div>
                <div class="form-group mt-2">
                    <label for="flight">Select Flight: </label>
                    <select name="flight-id" id="flight" class="form-control">
                        {% for flight in flights %}
                        <option value="{{flight.id}}"
                            >{{flight.origin}} to {{flight.destination}}</option
                        >
                        {% endfor %}
                    </select>
                </div>
                <button type="submit" class="btn btn-primary">
                    Add Passenger
                </button>
            </form>
            {% else %}
            <h1 class="jumbotron-heading text-center text-danger">
                Sorry, we do not have any flights in our database.
            </h1>
            {% endif %}
        </div>
    </body>
</html>

The above used syntax are specific to jinja2 template.

Jinja 2 Syntax:

Control Structure if Syntax:

{% if variable %}
<p>I will be executed if variable is not None.</p>
{% else %}
<p>I will be executed if variable is None.</p>
{% endif %}

For loop syntax:

{% for variable in iterator %}
<p>Here is the loop body</p>
{% endfor %}

Print Simple variable Syntax:

{{ variable_name }}

Print a list of all flights on the index page

<div class="container">
    {% if flights %}
    <h2>View Passengers on flights</h2>
    <ul class="list-group">
        {% for flight in flights %}
        <li class="list-group-item">
            {{flight.origin}} to {{flight.destination}}
        </li>
        {% endfor %}
    </ul>
    {% else %}
    <h2 class="text-danger">No flights found in database.</h2>
    {% endif %}
</div>

You need to add this html block below the div with jumbotron class.

Adding data to database

Now, you need to add data to database, in order to view the flights on index page.

Data we will add is:

INSERT INTO flights (origin, destination, duration)
    VALUES
        ('New York', 'London', 654),
        ('London', 'USA', 322),
        ('USA', 'France', 643),
        ('France', 'China', 242);

The data is random. We will insert it data using create_tables.py file


# Import flask and sqlalchemy
from sqlalchemy import create_engine
import os

# CHECK IF ENVIRONMENT VARIABLE IS SET
if not os.getenv('DATABASE_URL'):
    raise Exception('DATABASE URL IS NOT SET.')

# Create db instance
db = create_engine(os.getenv('DATABASE_URL'))

# Execute the database queries.
if __name__ == "__main__":
    # =========================
    #   FLights Table
    # =========================
    db.execute("""
        CREATE TABLE IF NOT EXISTS flights(
        id INTEGER PRIMARY KEY AUTOINCREMENT,
        origin VARCHAR(30) NOT NULL,
        destination VARCHAR(30) NOT NULL,
        duration INTEGER NOT NULL
        );""")


    # =========================
    #   Passengers Table
    # =========================

    db.execute("""
        CREATE TABLE IF NOT EXISTS passengers(
        id INTEGER PRIMARY KEY AUTOINCREMENT,
        name VARCHAR(30) NOT NULL,
        flight_id INTEGER NOT NULL,
        FOREIGN KEY(flight_id) REFERENCES "flights.id");
        """)

    # ==============================
    #   Insert data in flight Table
    # ==============================

    db.execute("""
        INSERT INTO flights (origin, destination, duration)
        VALUES
            ('New York', 'London', 654),
            ('London', 'USA', 322),
            ('USA', 'France', 643),
            ('France', 'China', 242);
        """);

Creating View Passengers Page

We will create passengers html page in templates directory.

<!DOCTYPE html>
<html lang="en" dir="ltr">
    <head>
        <title>View All Passengers</title>
        <meta charset="utf-8" />
        <link
            rel="stylesheet"
            href="https://stackpath.bootstrapcdn.com/bootstrap/4.4.1/css/bootstrap.min.css"
        />
    </head>
    <body>
        <div class="container">
            {% if passengers %}
            <h2>View Passengers on flight</h2>
            <ul class="list-group">
                {% for passenger in passengers %}
                <li class="list-group-item">
                    {{passenger.name}}
                </li>
                {% endfor %}
            </ul>
            {% else %}
            <h2 class="text-danger">No passengers found in database.</h2>
            {% endif %}
        </div>
    </body>
</html>

You will notice that we have duplicacy in the html code, most of the portion need to included in every html file. So, we could seperate that in layout.html. and use it, for this project we will avoid using layout.html file.

Creating routes for View passenger route.


# View all passengers
@app.route('/passengers/<int:id>')
def viewPassengers(id):
    # Get list of passengers
    passengers = db.execute("SELECT name from passengers WHERE flight_id=:id ", {"id": id })

    # Convert to list
    passengers = list(passengers)
    print(passengers)

    # Render list of passengers.
    return render_template('passengers.html', passengers=passengers)

Update index html file:

We have created flask route and html file, now we need to link them together. So, In the index.html file we created a list of all the flights, now we could turn the list in links which redirect us to the list of passengers.

<div class="container">
    {% if flights %}
    <h2>View Passengers on flights</h2>
    <ul class="list-group">
        {% for flight in flights %}
        <li class="list-group-item">
            <a href="{{url_for('viewPassengers', id=flight.id)}}">
                {{flight.origin}} to {{flight.destination}}
            </a>
        </li>
        {% endfor %}
    </ul>
    {% else %}
    <h2 class="text-danger">No flights found in database.</h2>
    {% endif %}
</div>

Updating add Passenger


# Create a route
@app.route('/add-passenger', methods=["POST"])
def addPassenger():
    # Extract information from form
    passenger = request.form.get('passenger-name')
    flight = request.form.get('flight-id')

    # Add passenger to the database
    db.execute("INSERT INTO passengers (flight_id, name) VALUES(:id, :name)", {
        "id": flight,
        "name": passenger
        })

    return redirect('/')

To use the redirect() function, we need to import the function from flask.

Project Finished.

Okay, we have completed the project and here are the screenshots of the website.

finished index page

finished passengers page
